CAPACITY LIST

Click on the images to zoom

CNC Wohlenberg 1070mm dia x 6000mm.

TURNING:

CNC Wohlenberg 1070mm dia x 6000mm.
CNC Boehringer 570mm dia x 2000mm.
Boehringer DM640 640mm dia x 1500mm.
Herbert 9C30 turret lathe with DRO.
Harrison V390 centre lathe with DRO and CSS.
Burkhardt & Weber Twin Pallet Machining Centre

MACHINING CENTRES:

CNC Burkhardt & Weber twin pallet with CNC indexing head’s 2200mm x 1600mm x 1350mm.
CNC Wadkin vertical 1500mm x 800mm x 760mm.
Kearns Richards CNC 5 Axis Horizontal Borer

HORIZONTAL BORING:

CNC Kearns NC125 5 axis twin pallet 3300mm x 2150mm x 2000mm.
CNC Kearns SJ100 6 axis 1500mm x 1200mm x 1200mm.
CNC Kearns SJ100/125 with 75 bar through spindle coolant 2700mm x 1200mm x 1200mm.
Kearns Richards, Churchill, Pegard, 6 machines up to 3500mm x 1600mm x 1600mm all with DRO.
Toshulin SKIQ-16 CNC 1600mm dia 4 axis control with side head.

VERTICAL BORING:

CNC Toshulin SKIQ-16 1600mm dia x 1900mm 4 axis control with side head.
CNC Toshulin SKIQ-12 1275mm dia x 1900mm with live spindle.
CNC W & B 1400mm dia x 750mm.
W & B, Schiess, Richards, 5 machines up to 3200mm dia x 1500mm all DRO.

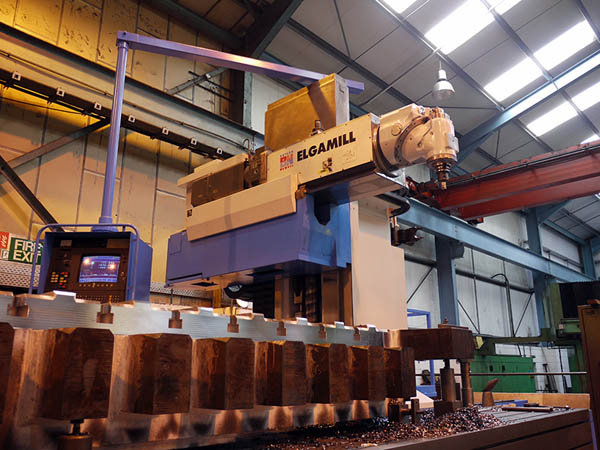

Elgamill HE4000 Milling/Boring machine with programmable indexing head.

Elgamill HE4000 Milling/Boring machine with programmable indexing head.

MILLING /BORING:

CNC Elgamill 8 Metre HE4000 CNC indexing head 6200mm x 1760mm x 1050mm
CNC Burkhardt & Weber CNC indexing head twin pallet 2200mm x 1600mm x 1300mm.
CNC Boko F3 1300mm x 800mm x 1100mm.
CNC Boko WF2 1500mm x 1000mm x 1100mm.
CNC Boko WF1 1000mm x 600mm x 900mm.
CNC Wadkin V8 1500mm x 800mm x 760mm.
NC Boko F63-100 2000mm x 1200mm x 1500mm.
Boko F63-10 2000mm x 1200mm x 1350mm.
Elgamill CS10 4200mm x 1500mm x 1000mm.
Stanko M654 1000mm x 500mm x 500mm.


DRILLING:

Radial Arm, 4 machines up to 2400mm reach.


SLOTTING:

Butlers, 2 machines from 200mm stroke to 760mm stroke.


KEYSEATING:

Fromag & Richards machines up to 75mm wide and 750mm through.


EXTERNAL SPLINING:

Craven 1050mm dia x 3750mm between centres / 550mm dia x 6000 mm using steady
Heckert 280mm dia x 2000mm between centres.
Crown 2000 co-ordinate measuring machine

INSPECTION:

Crown 2000 co-ordinate measuring machine 1150mm x 2100mm x 1500mm with QCT software.
